FORGING PRESS

•

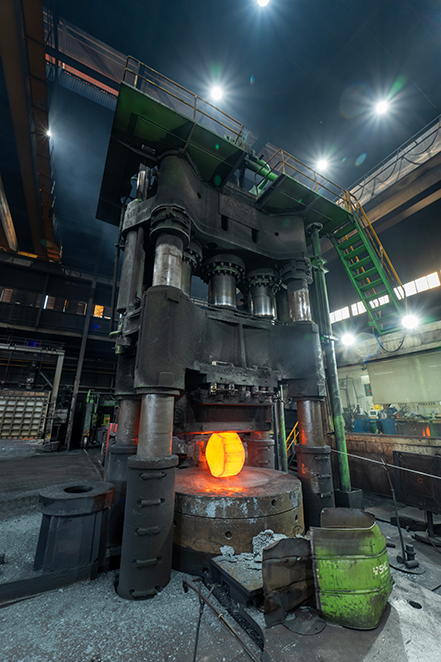

  5,000 Ton

  Max. OD	3,500mm (12 ft)
  Max. Length	7,000mm (23 ft)
  Max. Weight	20Ton (44,093 lb)

•

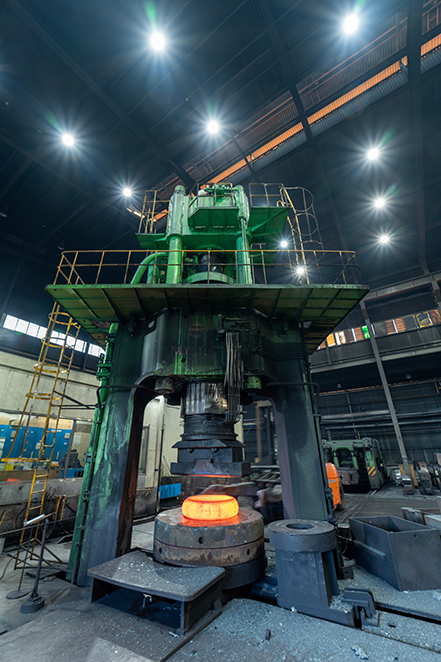

  2,500 Ton

  Max. OD	2,000mm (7 ft)
  Max. Length	3,000mm (12 ft)
  Max. Weight	10Ton (22,046 lb)

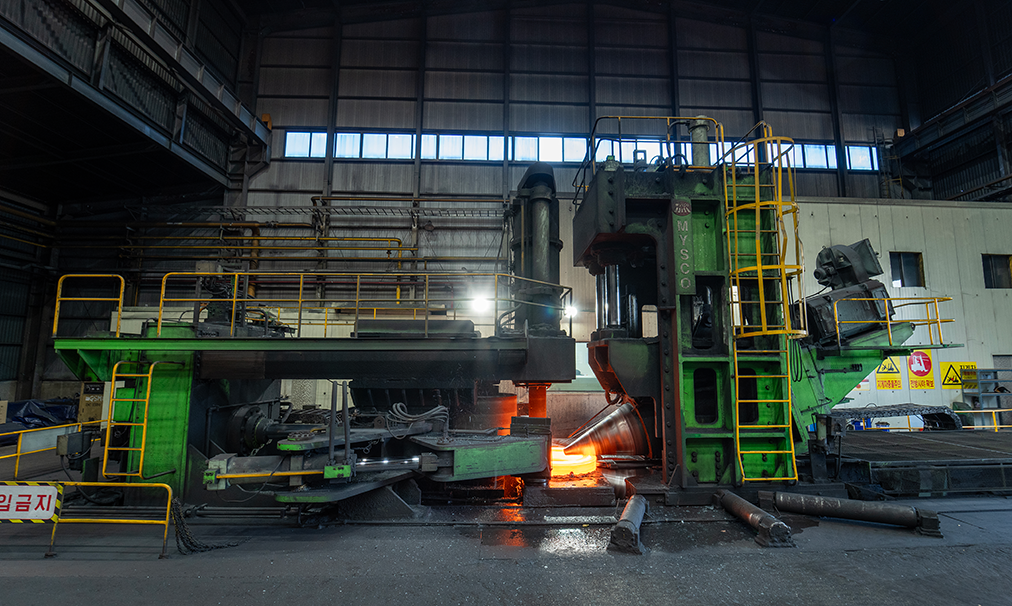

RING ROLLING MILL

•

  6,000 Ø

  Maximum OD	6,500mm (21 ft)
  Maximum length	1,200mm (4 ft)
  Maximum weight	20Ton (44,093 lb)
  Ring type equipment for profile forging

FORGING PRESS

•

  2,000 Ton

  Max. OD	2,000mm (7 ft)
  Max. Length	3,000mm (12 ft)
  Max. Weight	7Ton (15,433 lb)

•

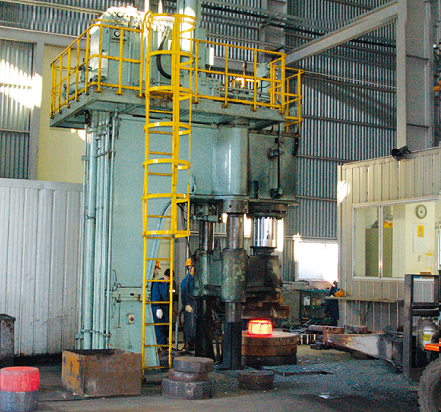

  750 Ton

  Max. OD	1,000mm (3.3 ft)
  Max. Length	2,000mm (7 ft)
  Max. Weight	3Ton (6,614 lb)

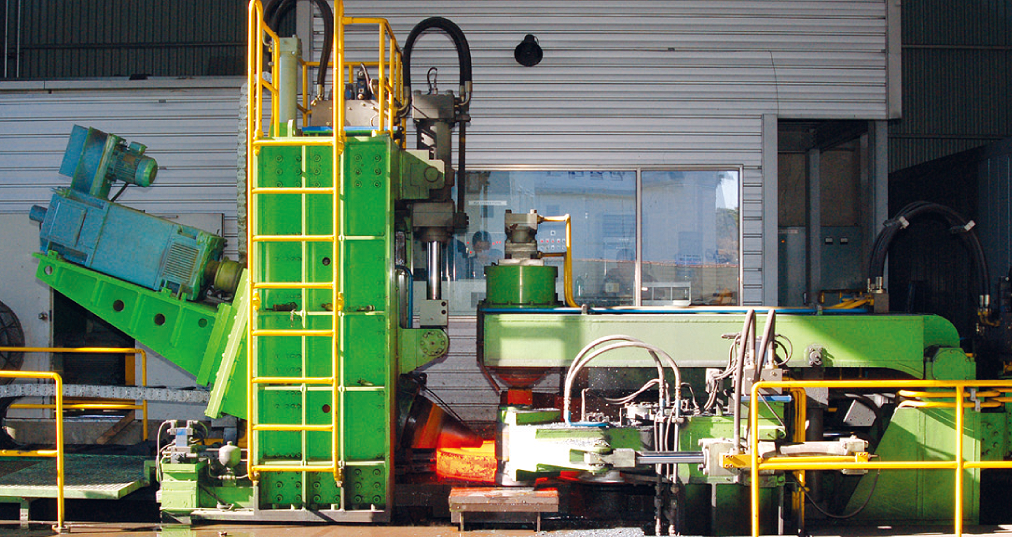

RING ROLLING MILL

•

  2,000 Ø

  Maximum OD	2,000mm (7 ft)
  Maximum Length	500mm (2 ft)
  Maximum weight	3.5Ton (7,717 lb)
  Ring Type equipment for Profile forging

HEATING FURNACE

•

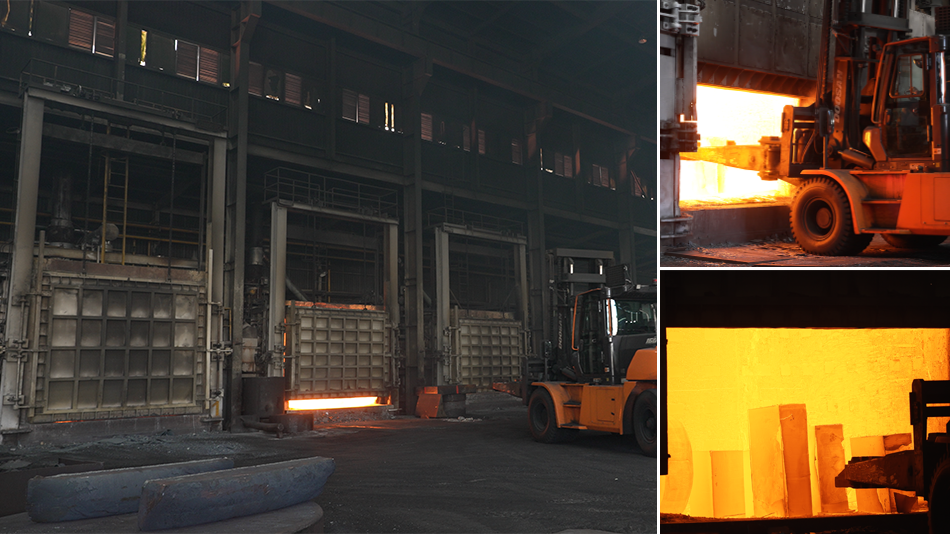

  BATCH TYPE

  NO.	Description
  1	50 Ton x 5 Units
  2	30 Ton x 1 Unit
  3	25 Ton x 2 Units
  4	15 Ton, 20 Ton, 30 Ton, 50 Ton (4 Units)

•

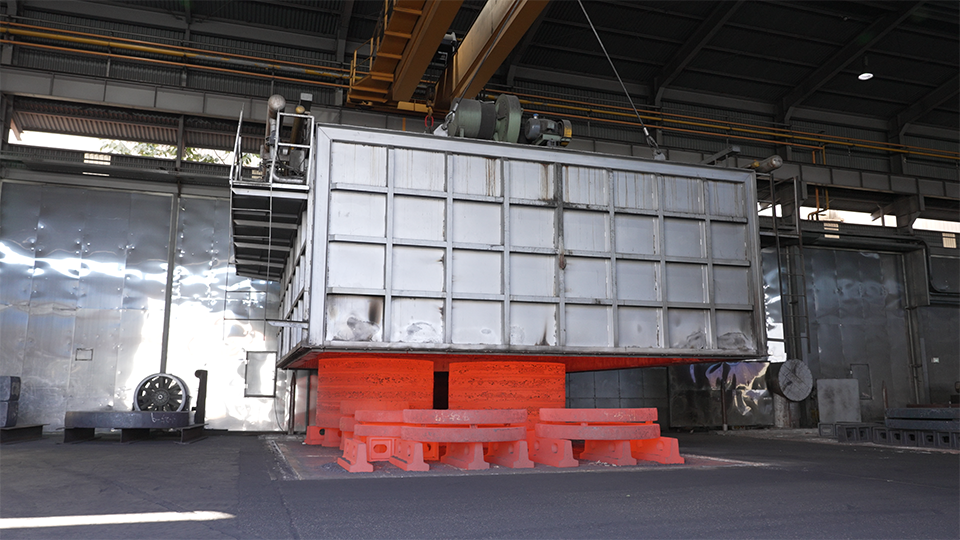

  BELL TYPE

  NO.	Description
  1	60 Ton/ch - (6,000W x 7,200L x 2,500H) / 1 Unit / (Max. 1,180'C)
  2	50 Ton/ch - (6,000W x 6,300L x 2,500H) / 1 Unit / (Max. 1,180'C)

•

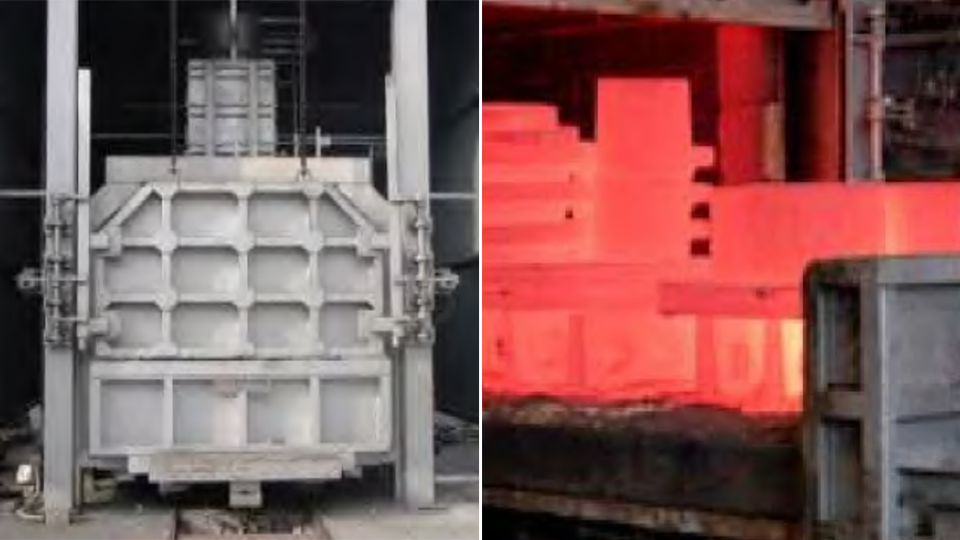

  CAR TYPE

  NO.	Description
  1	60 Ton/ch - (5,500W x 7,000L x 3,300H) / 1 Unit / (Max. 1,180'C)
  2	30 Ton/ch - (4,000W x 5,600L x 2,500H) / 1 Unit / (Max. 1, 180 C)
  3	50 Ton/ch - (3,500W x 4,400L x 2,300H) / 1 Unit/ (Max. 1, 180°C)
  4	10 Ton/ch - (3,000W x 4,000L x 2,000H) / 1 Unit / (Max. 1,180°C)

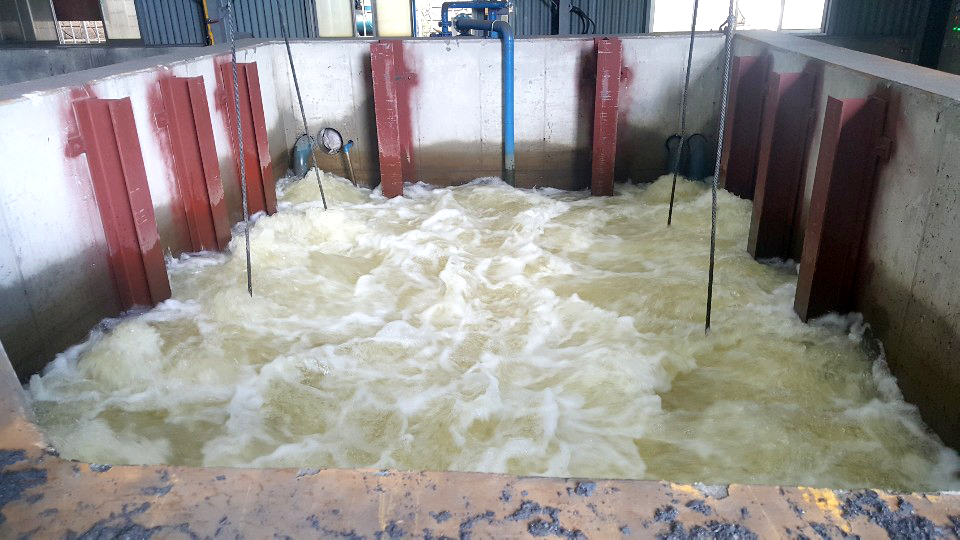

COOLING TANK

•

  Type	WATER COOLING
  Size	4000W X 3500H X 6000L
